Product Description

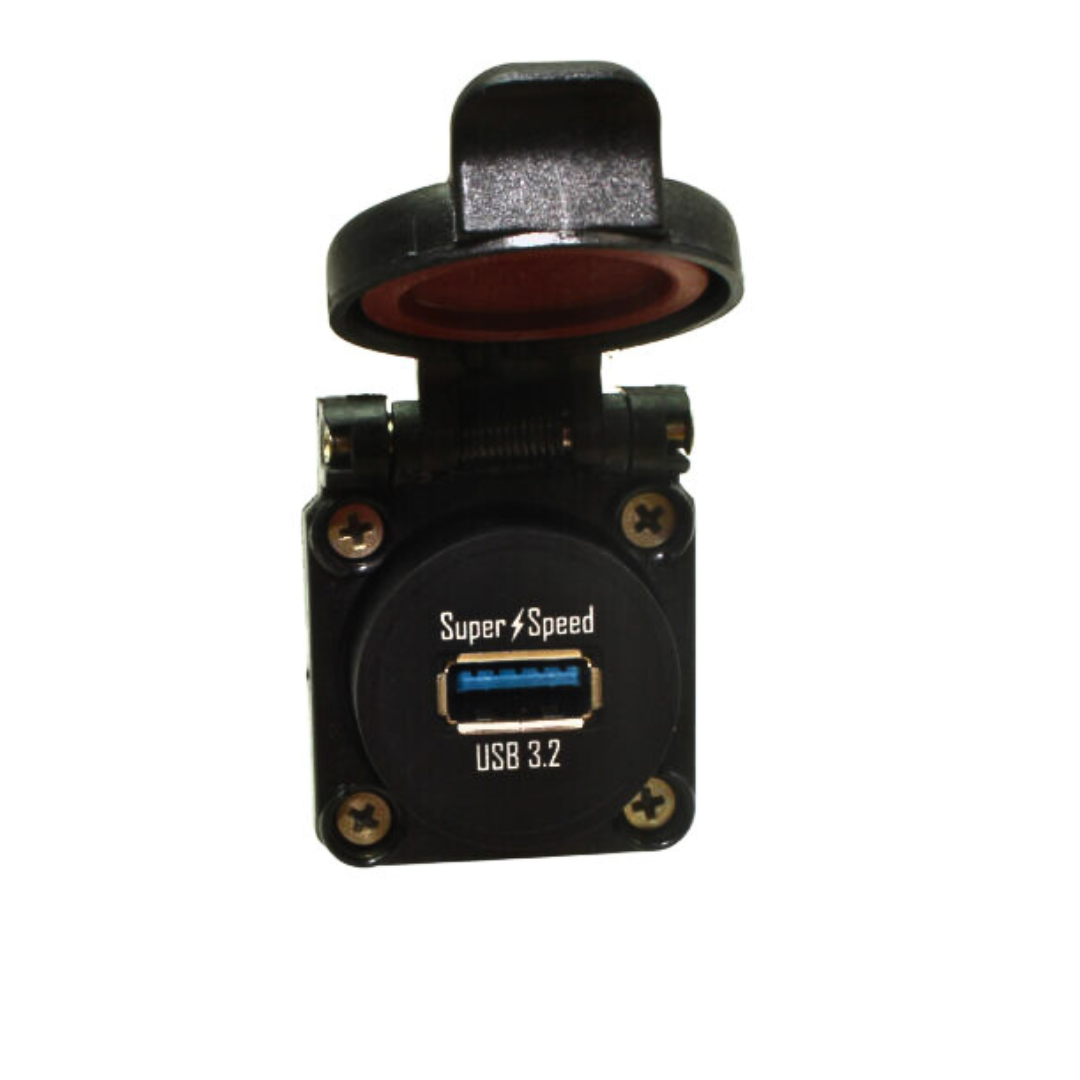

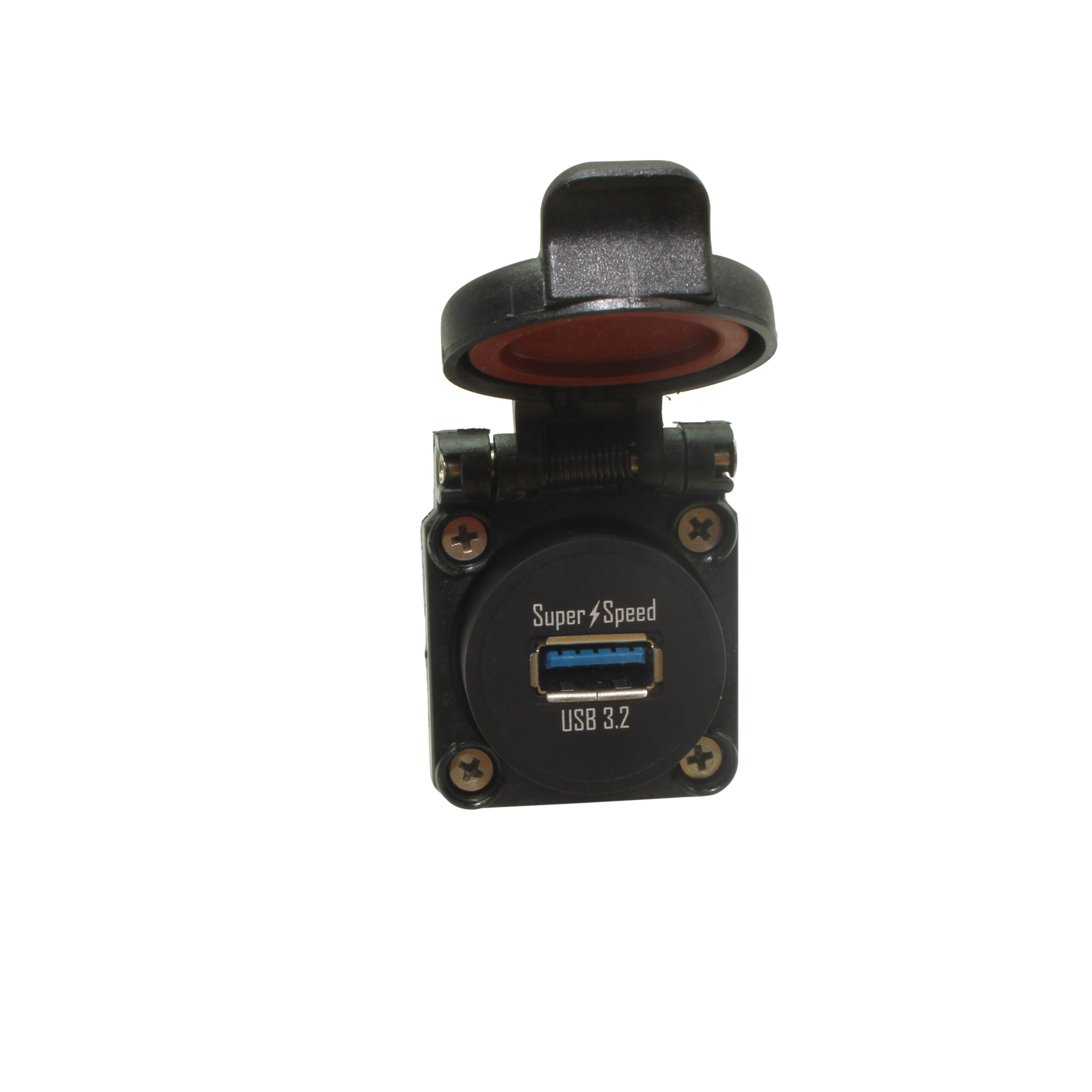

Lone Star Aviation’s new USB 3.1 panel port was designed as a clone similar to a Amphenol Mil-C-26482 body with spring loaded cover. The internal circuit incorporates a redriver to amplify and transmit super speed data, i.e. USB 3.1 Gen 2, 10Gb/s from a USB panel port to a SSD thumb drive or cable. The rear of USB panel mount incorporates a USB C connector for a USB C to USB type A cable to avionics with USB-C outputs.
The USB 3.1 panel port was designed to assist the avionics technician in downloading large files of data from classified missions that recorded video, voice and GPS data into a high speed thumb drive for analysis back at a secure location.
USB 3.1 Panel Mount circuit designed with a USB-C output connector compatible with ( 1m), (2m) or (3m) meter cables, see drawing LS03-05043 describing compatible cables for high speed USB-C to USB Type A cable ends. Specific cables listed have thumb screws for locking to USB connector housing and or USB Type A locking to device end.
The USB connector body can be mounted with or without the swivel CAP and included silicone gasket. Mounting holes are designed for 4-40 PPH screws.
Label is applied on the round front bezel to identify the part number, part name, mfg. serial number and lot number during manufacturing for traceability. Â
See PDF data sheet LS03-05060, LS03-05043 below for more technical information.
