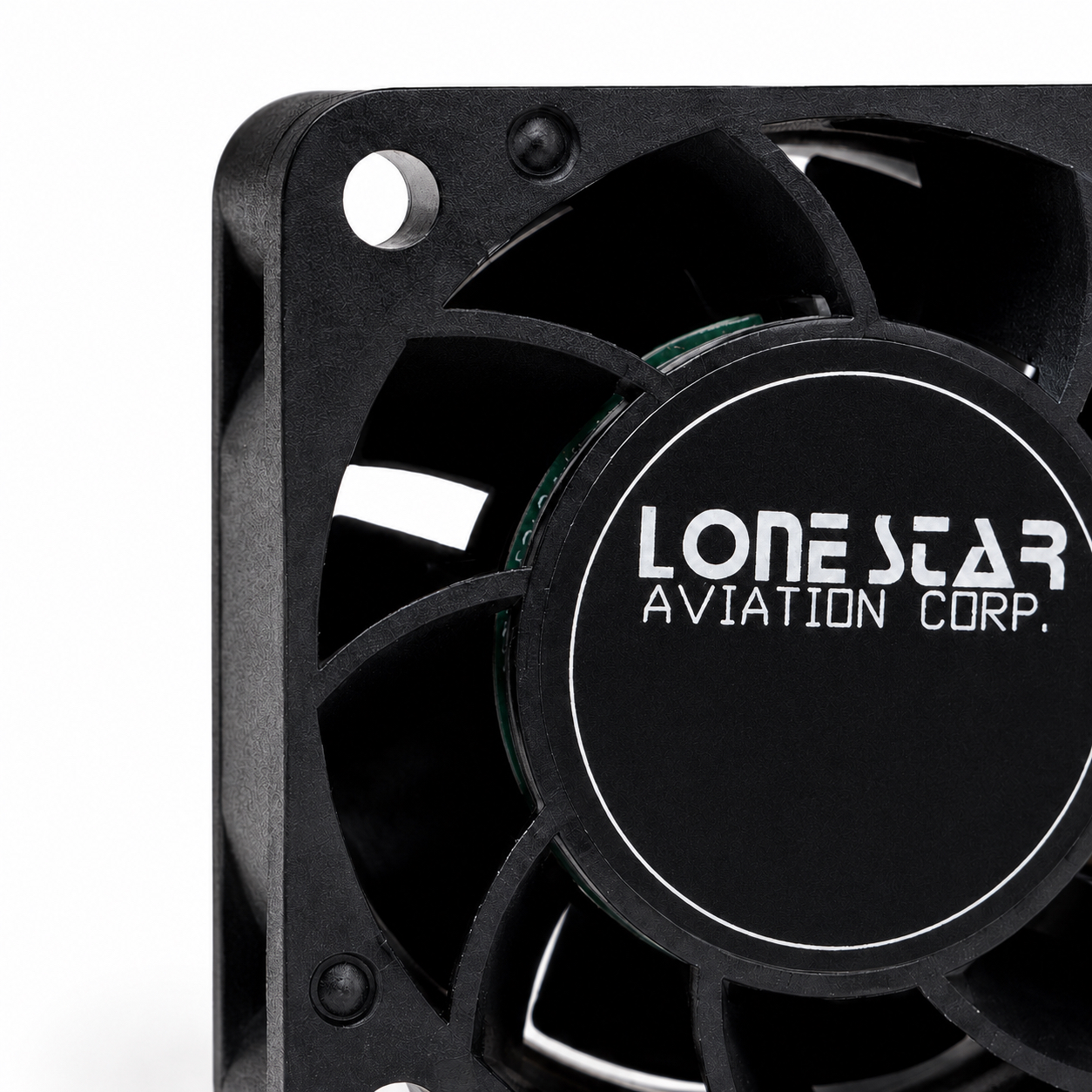

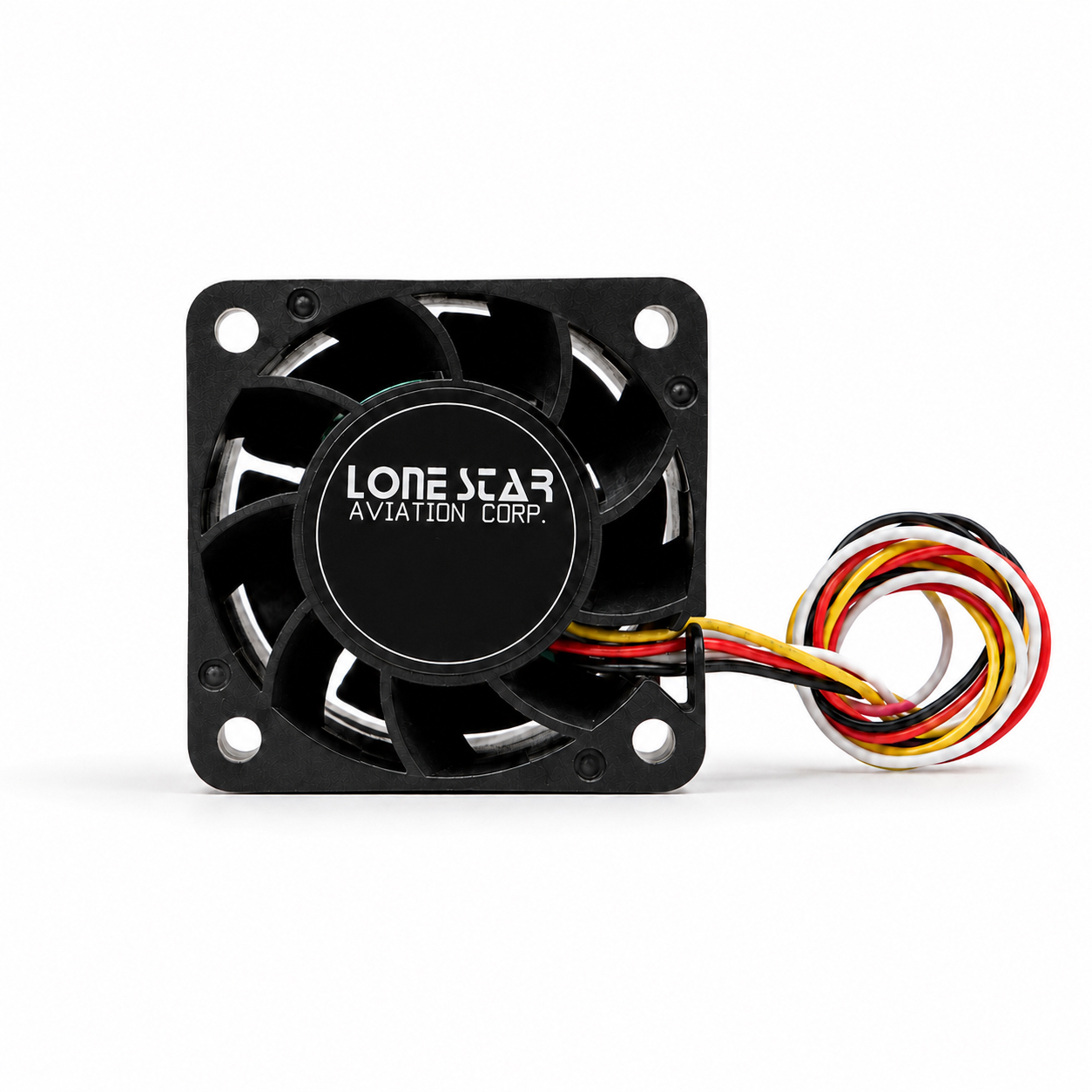

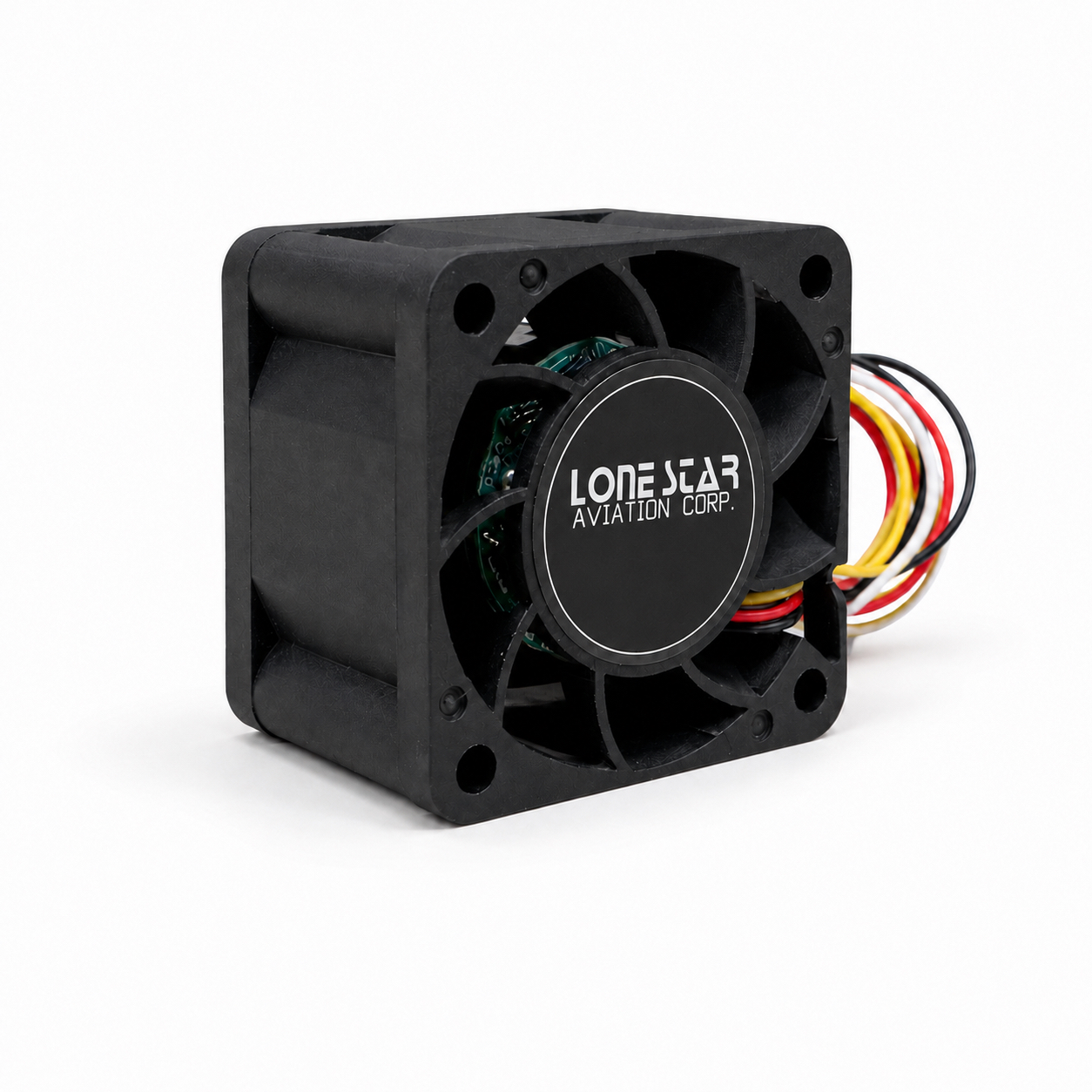

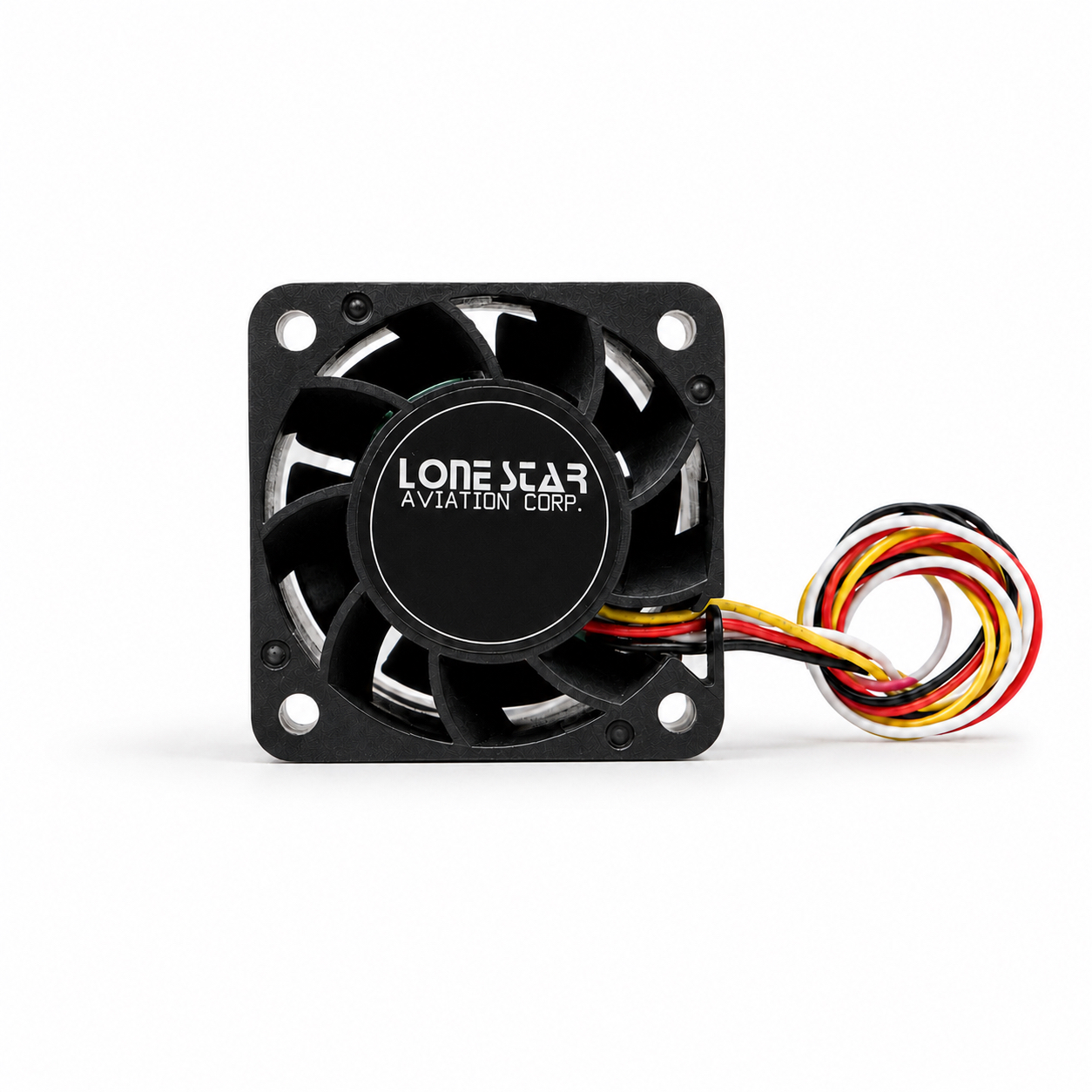

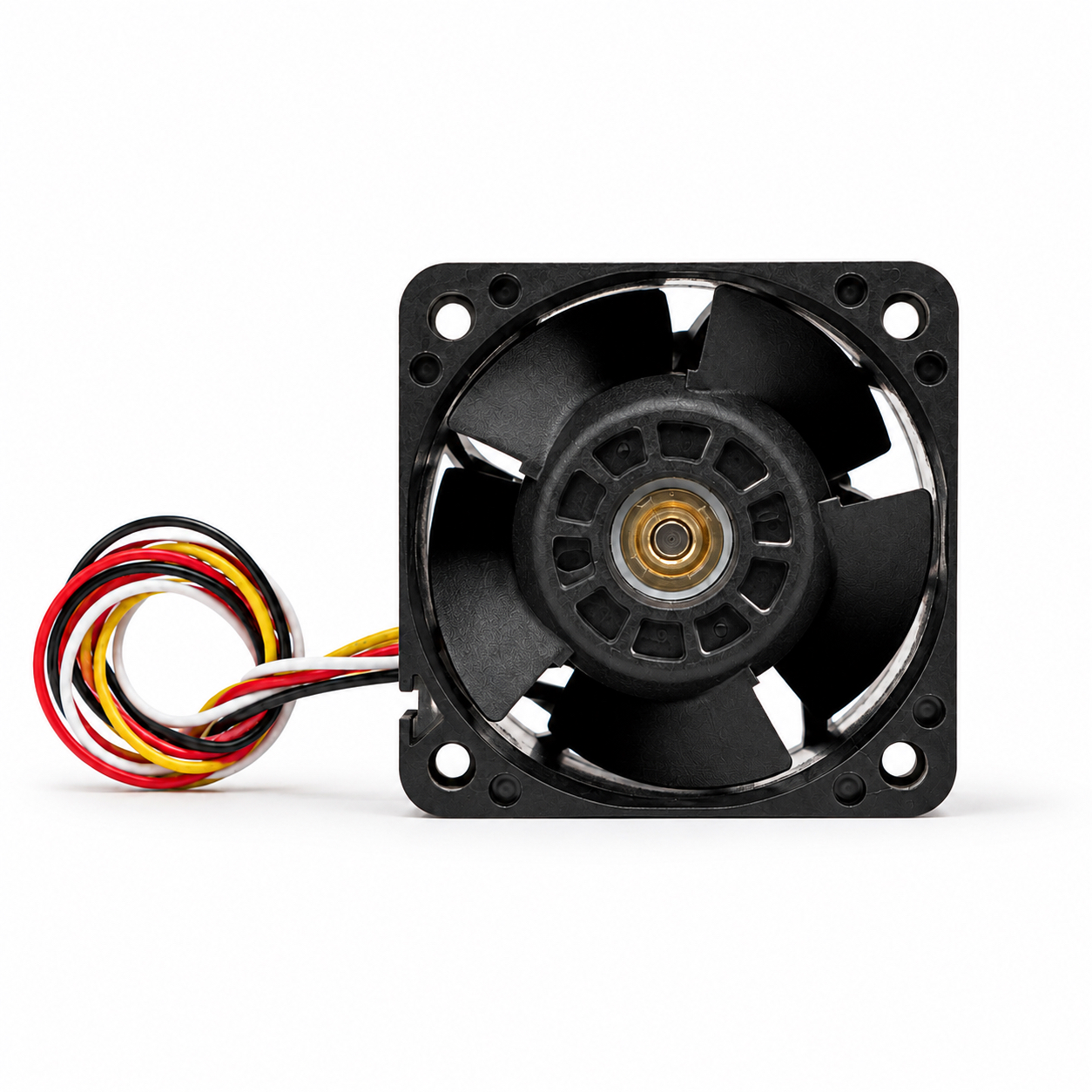

DC Axial Fan 40 x 40 x 28mm.

Description

Lone Star Aviation’s 40x40x28mm high performance axial FANs was designed and tested to DO160G , (pending) to ensure the device can survive in harsh environmental conditions for airborne, rotor-craft, eVTOL military vehicles and or other ruggedized markets.  This NEW AXIAL FAN was designed from the same series as the 80, 120mm including the being DO160G TESTED, IP-67, intelligent motor, motor protections, high RPM, high pressure,  Company can design high volume mold, specialty dc motors and mounting to your drawings. LS03-02047B is a custom LSA design manufactured to our drawings and specifications for aerospace.

PART NUMBER: LS03-02050

Specifications: 40 x 40 x 28mm

1. Voltage 28V, nominal: Range (20-32vdc)
2. Ball Bearing
3. DC brushless motor
4. Circuit Protection: OV, UV, OT, OC, LR
5. High Speed balanced air wheel
6. CFM 27.28
7. Size 40mm x 40mm x 28mm
8. Weight – 49g
9. Material:  Thermoplastic PBT Reinforced Fiberglass plastic
10. Expended Lifetime: 70,000hrs
11. IP67 (Dust, Waterproof)
12. LABEL: FAN part number w/serial number
13. DO160G TESTING: pending TESTING Schedule

Call sales if you have a new application, we have hundreds of drawings for various axial, vane axial, blower designs for ruggedized environments. DO160G TESTING available by company level TEST reports, call for quote.
