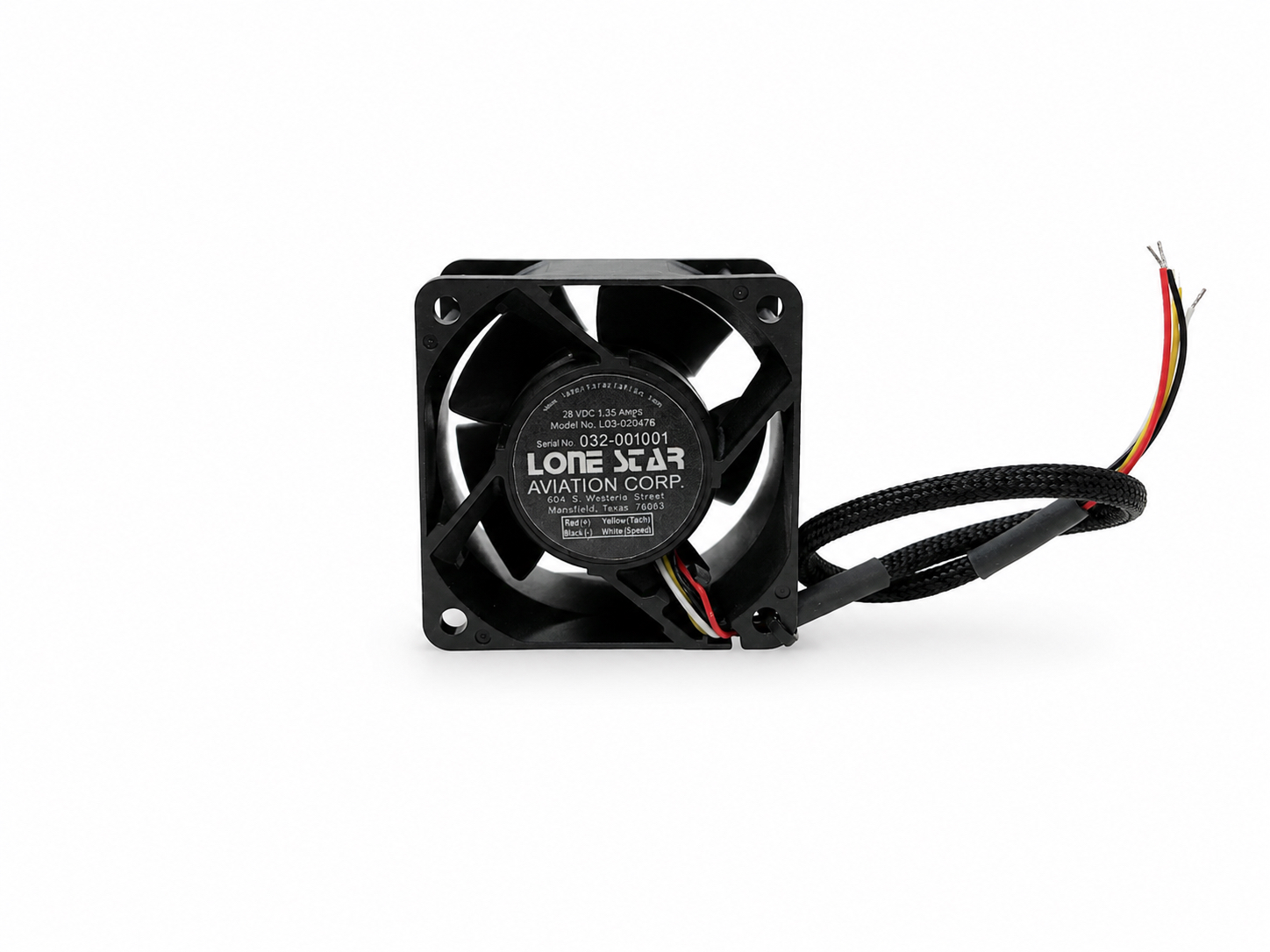

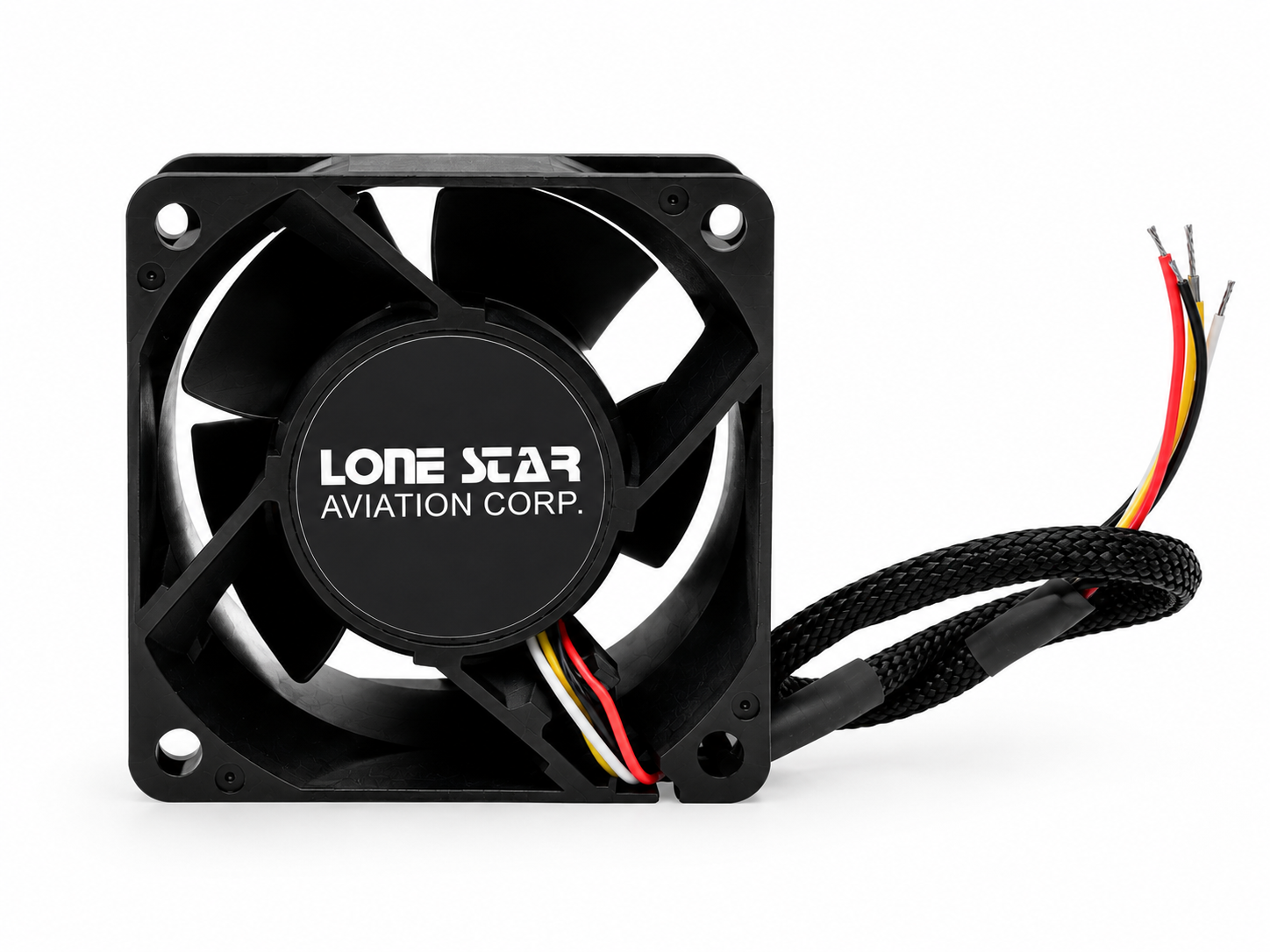

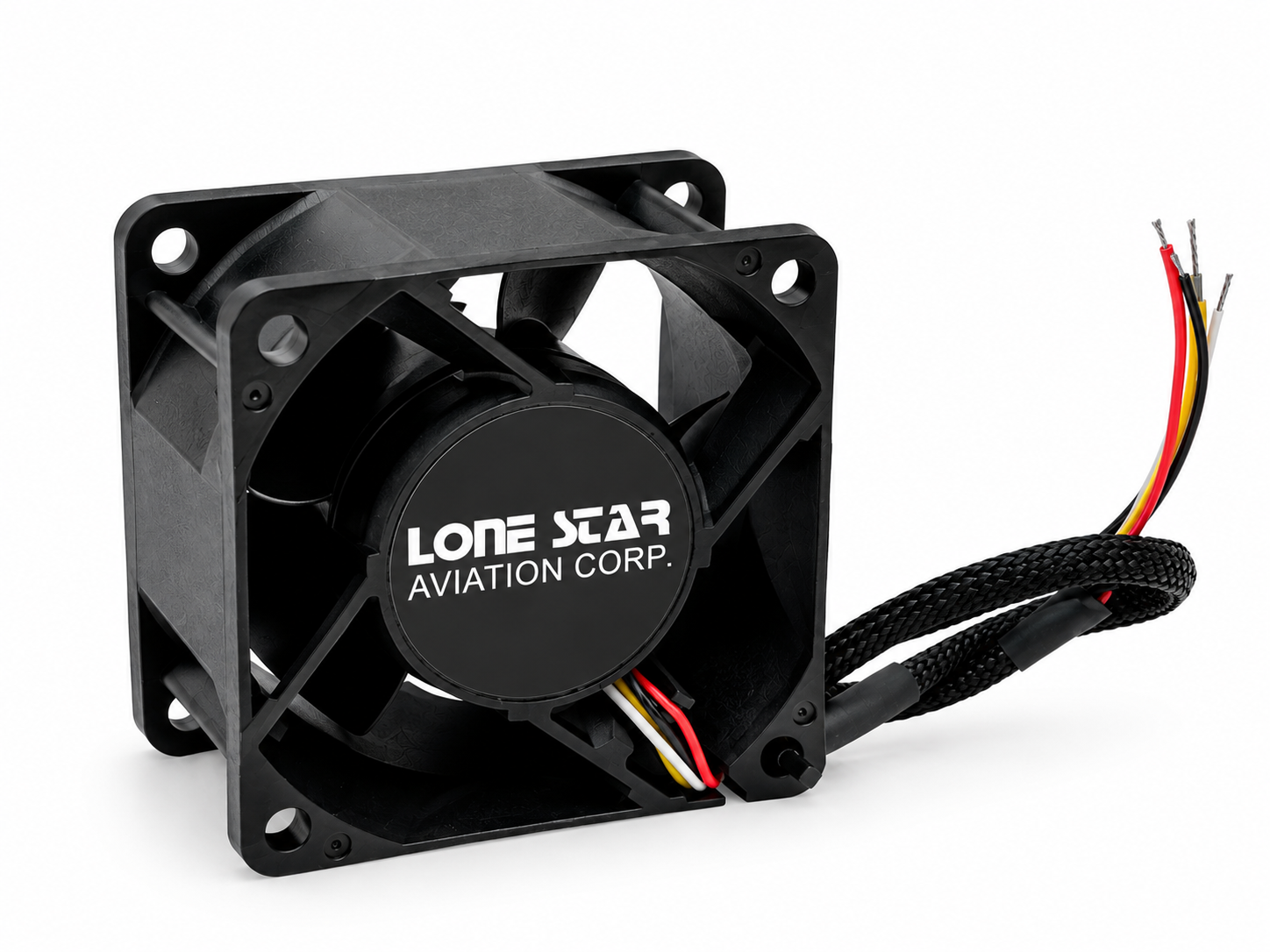

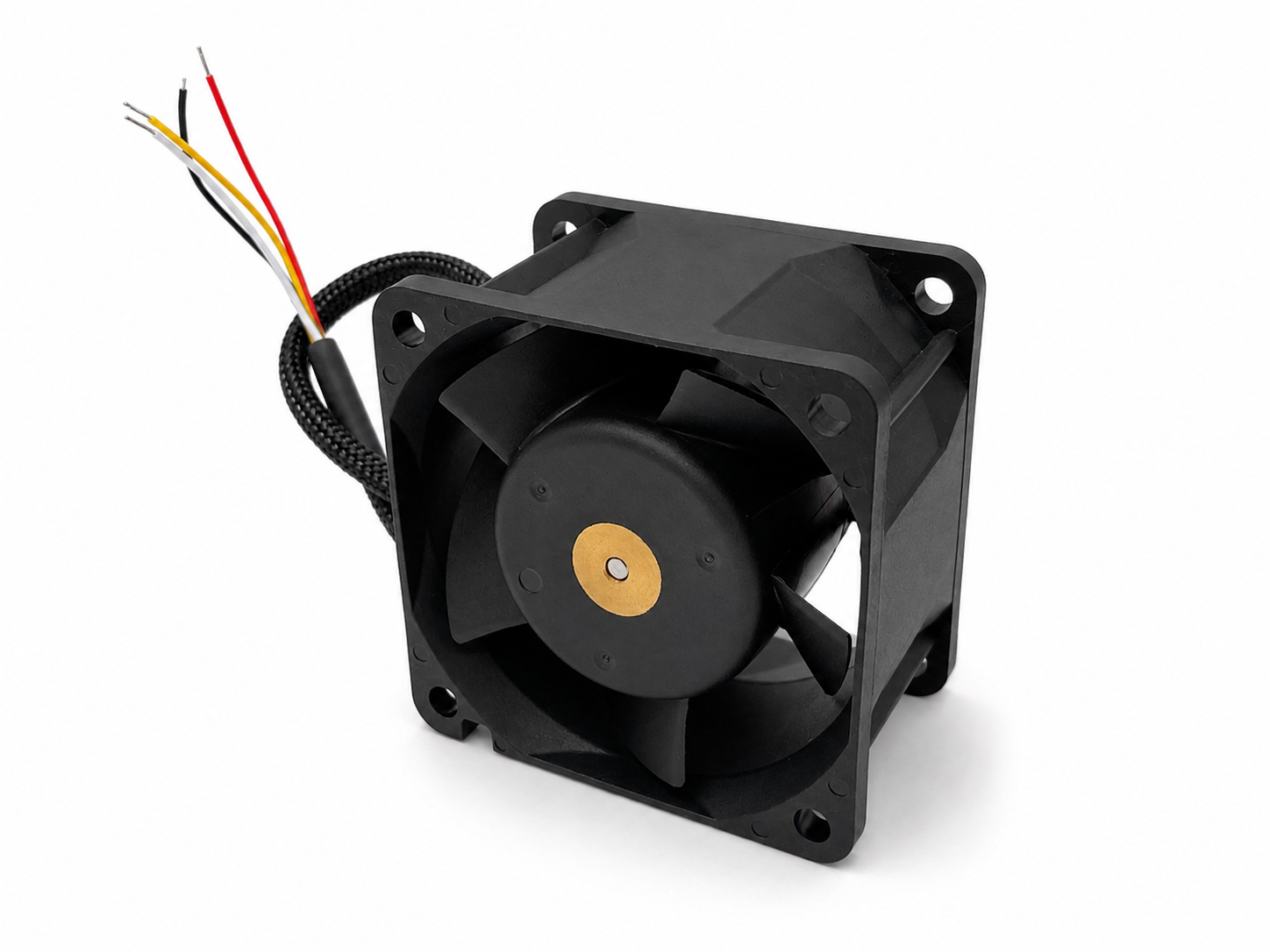

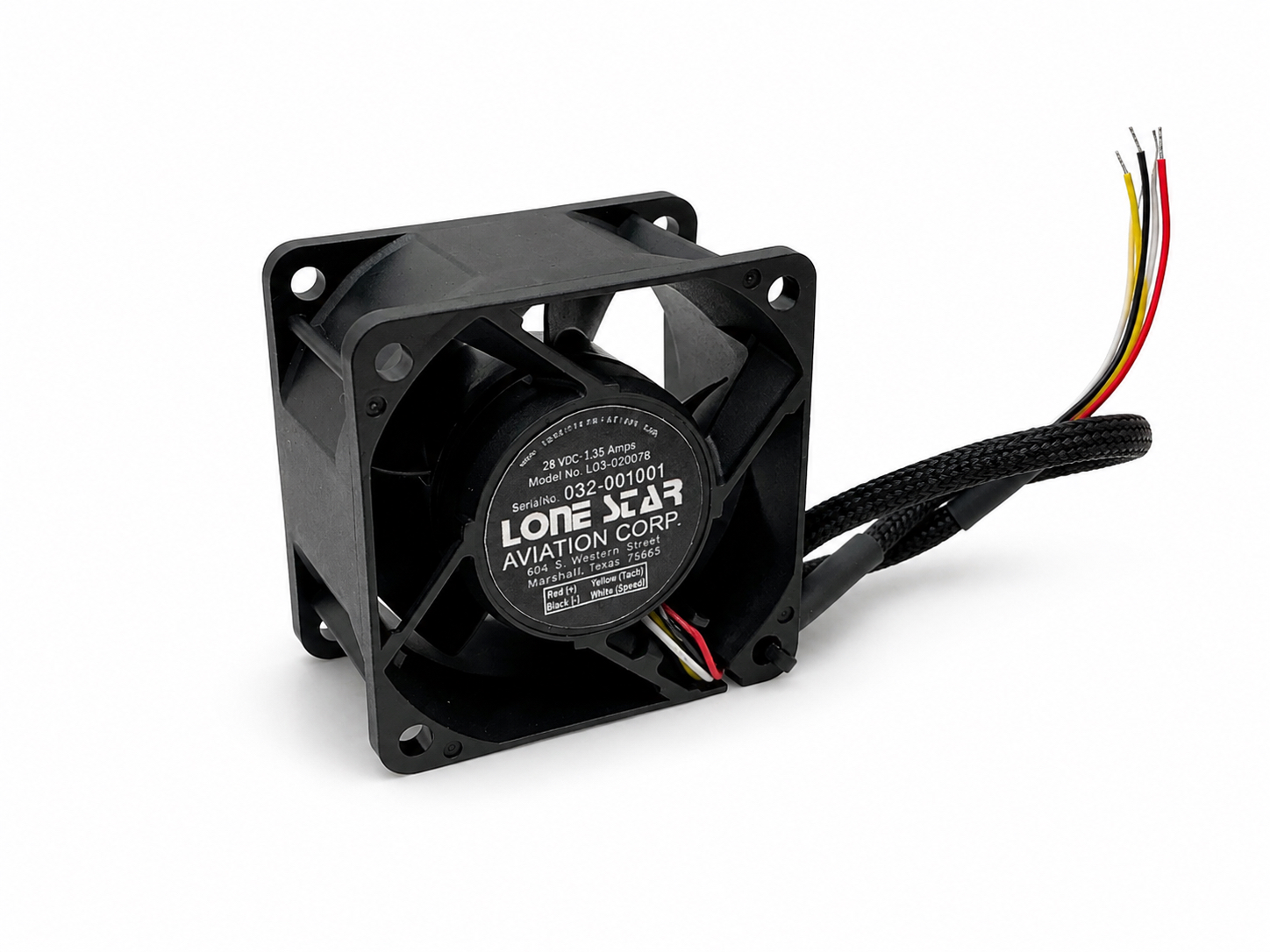

DC Axial Fan 60 x 60 x 38mm

Description

Lone Star Aviation’s 60x60x38mm high performance axial FANs were designed and tested to DO160G, (pending) to ensure the device can survive in harsh environmental conditions for airborne, rotor-craft, eVTOL military vehicles and or other ruggedized markets.  This NEW AXIAL FAN were designed from the same series as the 80mm, 120mm  including DO160G TESTING, IP-67, intelligent motor, motor protections, high RPM, high pressure, high temperature PBT Frame and AIR Wheel molding, as well as an average Lifetime of 70,000 hours.

Company can design rack panels for any listed motor size, add grills, grill with air filters, and options for SPEED CONTROL, FFW, FAN FAILURE WARNING module or other customer requirements to your drawings. LS03-02047B is a custom LSA Dc Motor Design, fan design manufactured to our drawings and specifications for aerospace and ruggedized markets.

PART NUMBER: LS03-02047B

Specifications: 60 x 60 x 38mm

1. Voltage 28V, nominal :Range (20-32vdc)
2. Ball Bearing
3. DC brushless motor
4. Circuit Protection: OV, UV, OT, OC, LR
5. High Speed balanced air wheel
6. CFM 66.67
7. Size: 2.36 x 2.36 x 0.177
8. Weight – 128.5g

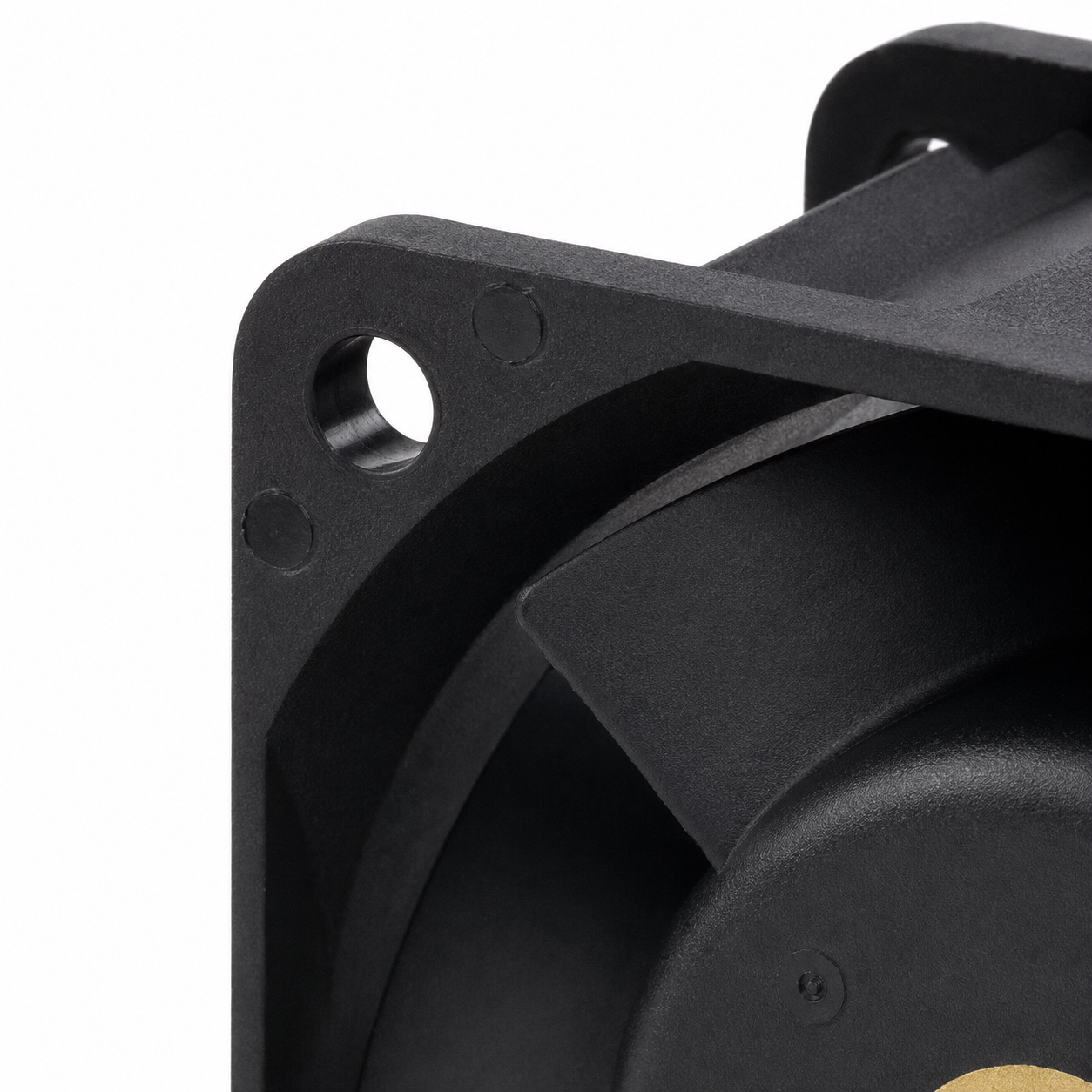

9. Material:  PBT Reinforced Fiberglass plastic
10. Expended Lifetime: 70,000hrs
11. IP67 (Dust, Waterproof)
12. LABEL: FAN part number w/serial number
13. DO160G TESTING: pending TESTING Schedule

Call our sales engineers if you have a new FAN application, we have a library of drawings for various axial, vane axial, blower designs, FFW, Fan Failure Warning, Speed Control Module, racks, harnesses for ruggedized environments.

DO160G TESTING available, call for quote.
